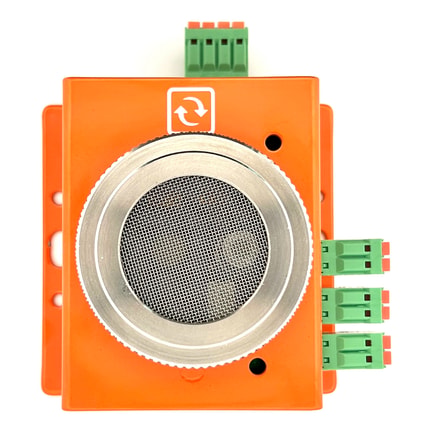

Independently tested by the Fire & Risk Alliance in a live-fire lithium-ion battery thermal runaway test. The R-GAS-FLAMMABLE provides superior early warning for both initial off-gas and faster hydrogen detection compared to legacy LEL detectors.


The Verdict: By confirming hazards faster, this sensor can enable a critical 90-second mitigation window.

The R-GAS-FLAMMABLE sensor has undergone rigorous UL9540A Unit Level testing by a leading Battery Energy Storage System (BESS) OEM. The results strongly validate the sensor's capabilities, matching the early warning performance observed in independent Fire Risk Alliance (FRA) tests for both off-gas and faster hydrogen detection.

• Clear Visibility of Cell Venting: The test yielded excellent results, providing a clear view of the cell venting event.


• Rapid Offgas Detection: Showcased the rapid response of the sensor in detecting initial offgas conditions.


• Faster Hydrogen Detection: In one Stage 3 testing (Thermal Runaway), the sensor detected Hydrogen 42 seconds before another legacy H2 gas detector (which triggered the purge system) and 55 seconds before the fire alarm activated.


• Mitigation Advantage: That extra time window could be used to immediately activate purging (fan + vents), reducing the chance that an explosive gas mixture accumulates and lingers inside the enclosure.


• Multi-Gas Confirmation: The sensor successfully detected six different flammable gases, twice, confirming both its high sensitivity and repeatable performance in identifying offgas and thermal runaway conditions.

Conclusion: These unit-level test results strongly support the sensor’s reliability and effectiveness in critical battery safety applications.

Unlike traditional catalytic sensors, the R-GAS-FLAMMABLE is engineered to withstand exposure to siloxanes without degrading. Independent testing exposed sensors to continuous D4 and D5 siloxane vapor over 60 hours to compare performance.


The Verdict: The R-GAS-FLAMMABLE maintained consistent baseline output with zero drift across the entire test, while the catalytic sensor suffered a cumulative 20% loss in sensitivity.

The R-GAS-FLAMMABLE has undergone an unprecedented level of rigorous, independent laboratory testing. Designed for non-hazardous critical facilities. It is among the most comprehensively tested flammable gas detectors in the BESS category, with certifications spanning UL 2075, CSFM, CE, and 10+ IEC standards.

North American Safety Listings

• ETL Listed (Intertek): Certified to UL 2075:2013 Ed.2 (Standard for Gas and Vapor Detectors and Sensors).
• CSFM Listed: Approved by the California State Fire Marshal (Listing No. 5275-2414:0001) for stationary systems.

EU Directives & CE Certifications

• Low Voltage Directive (LVD): Certified to EN 61010-1:2010+A1:2019 for the electrical safety of measurement and control equipment.
• Gas Detector EMC: Certified to EN 50270:2015, the rigorous electromagnetic compatibility standard specifically for combustible and toxic gas detectors.
• General EMC: Certified to EN 55032:2015 (Emissions) and EN 55035:2017 (Immunity).

Rigorous Environmental & Mechanical Testing (IEC)

• IEC 60068-2-30:2005: Successfully passed grueling temperature and humidity cycling tests (up to 40°C at 98% RH).
• IEC 60068-2-6:2007: Passed 3-axis vibration testing (X, Y, Z) to ensure structural integrity and continuous operation in demanding physical environments.

Advanced Immunity & Interference Testing (IEC)

• IEC 61000-4-4:2012: Electrical Fast Transient/Burst Immunity.
• IEC 61000-4-5:2014+AMD1:2017: Surge Immunity Testing.
• IEC 61000-4-6:2023: Immunity to Conducted Disturbances Induced by RF Fields.
• IEC 61000-4-2 & IEC 61000-4-3: Electrostatic Discharge (ESD) and Radiated RF Immunity.
• IEC 61000-4-29: Resilience against Voltage Dips and Interruptions.

Environmental Compliance

• RoHS 3 (EU 2015/863): Strict adherence to hazardous substance limits.
• REACH (EC No 1907/2006): Compliant with the latest ECHA Candidate List of SVHCs.

With the latest firmware, the detector now supports detector-level Cross-Zoning for H2 (hydrogen).

• Industry First: Cross-Zoning means that an alarm is only triggered when two or more detectors confirm the same event, helping reduce the risk of false alarms. Traditionally this logic sits in the control panel or PLC; having it implemented directly in the detector is an industry first.


• Simplified Design: This new feature simplifies system design, reduces potential single points of failure, and makes it easier to achieve a higher level of safety in battery energy storage applications.

Our OEM partner Kentec received the Best Active Fire Safety Product Winner at Intersec Global and UltraSense received the Reader's Award from Fire Buyer International.

The Prevent-iON Mobile App is the dedicated Android companion app for the R-GAS-FLAMMABLE: Test. Configure. Commission. Inspect. Diagnose. Update.

• Commission & configure: thresholds, Modbus slave ID, RTU communication settings and relay triggers per gas type & LEL%.
• Real-time graphing & trending of every gas channel, plus temperature & humidity.
• Inspection: record gas (bump) tests and generate digital reports for your annual inspection trail.
• Diagnostics & firmware updates on site, without a PC.
• Requires the AX-USB-RJ45 adapter and an Android 8+ smartphone or tablet with USB OTG support.
• Minimum R-GAS-FLAMMABLE firmware: version 4.39.03.

The R-GAS-FLAMMABLE User Manual is the complete reference for installers, commissioning engineers and integrators — from mounting and wiring through Modbus configuration, BESS setup and periodic bump testing.

Installation & Wiring

• Mounting options: 0U rack, DIN rail, wall mount and magnetic — plus the earth grounding requirement for ESD protection.
• Screwless terminal blocks: step-by-step wire insertion, 16-24 AWG solid wire.
• 12-24VDC power-up, polarity verification, and when a Zener diode is required (supplies in the 15-20V band, or above 24V ±10%).
• Relay terminal limits and the SELV / PELV / Class 2 external power requirement.
• Fire panel integration: RS485 or auxiliary DC only — not compatible with addressable SLC or NAC loops.
• Connecting to the Base Unit over RJ45, including the modified cable needed when the detector is separately powered.

Configuration & Maintenance

• Rotary encoder slave ID addressing (hex, 254 combinations) and Modbus RTU defaults.
• Full Modbus register map: gas readings, fault & detector status, relay trigger sources, thresholds, delays and minimum running time.
• Relay trigger source selection per gas channel, latching mode, and Secondary Trigger Source (AND logic).
• Deactivating unnecessary fault triggers to suppress false alerts.
• Periodic gas (bump) testing: required equipment, procedure, and recommended calibrated cylinder mixtures for CH₄ and H₂.
• LED and fault status codes, cross-sensitivity notes, and the non-condensing operating envelope.

User Manual

Firmware is loaded onto the detector with the Prevent-iON Mobile App over the AX-USB-RJ45 adapter. No PC is required and the detector does not need to be removed from site.

Current Listed Firmware — Version 4.41.17

The version covered by the current ETL listing to UL 2075. Use this release for any installation where the listing has to be maintained. It includes the extended LED status indications and the revised humidity logic (no nuisance faults above 60g/m³ absolute humidity, introduced in 4.41.09).

Download Listed Firmware

Pre-Release Firmware — Version 4.41.18 (Certification Pending)

Version 4.41.18 introduces the Secondary Trigger Source, enabling detector-level Cross-Zoning: a relay activates only when two independently configured trigger conditions are both met (AND logic). This release is currently under evaluation and is not yet covered by the ETL / UL 2075 listing.

Download Pre-Release Firmware
