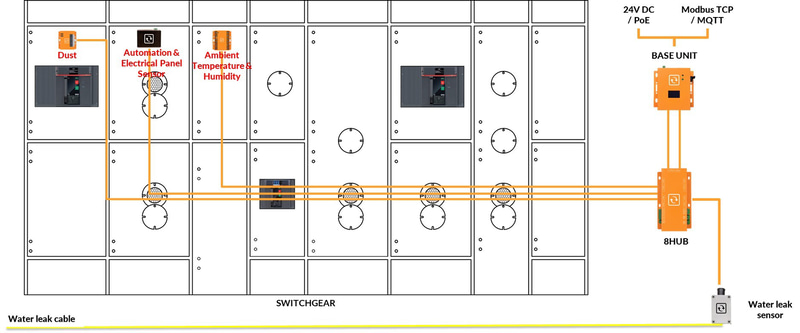

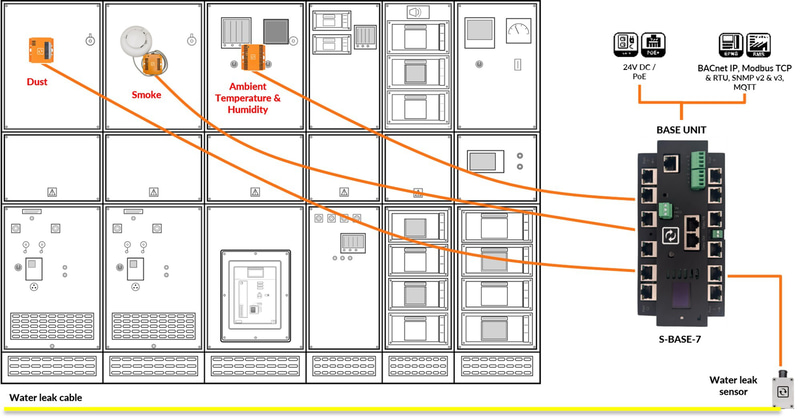

The infographic shows a possible installation of SwitchMon’s sensors on commercial and industrial Switchgear.

The sensors illustrated in the infographic are designed for continuous conditional monitoring (CCM).

With our environment sensors we enable operators of critical electrical assets to implement NFPA 70 B-compliant continuous environment monitoring.

Based on the infographic configuration, the Bill of Materials could be:
1x Base Unit (BASE-SM-5-24V)
1x 8 Sensorhub (EXP-8HUB-L)
1x Optical Dust Sensor (ENV-DUST-L)
1x Temperature & Humidity Sensor (ENV-THUM-L)
1x Automation & Electrical Panel Sensor (R-EGD-PANEL)

The configuration is listed to:
UL 62368 for the Base Unit, 8 Sensorhub
UL 61010 for the Dust Sensor, and Temperature & Humidity Sensor
Automation & Electrical Panel Sensor is ETL listed to the UL61010 standard.
Our SwitchMon partners can help you customize the configuration to your environment based on NFPA and other local code requirements.
