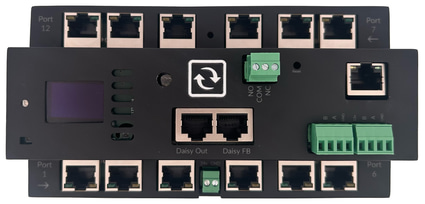

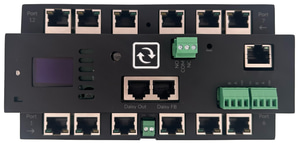

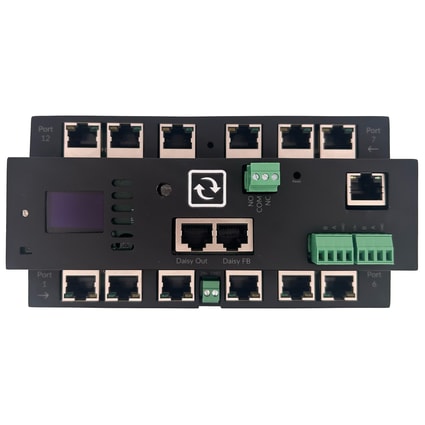

S-BASE-7SwitchMon Base Unit
SensorGateway v7
The hub for continuous thermography, condition & environment monitoring.
Supports NFPA 70B electrical maintenance programs & FM loss prevention.
EPMS & BMS integration via SNMP, Modbus, BACnet IP & MQTT.
Up to 12 M Series sensors via dedicated sensor ports.
Embedded firewall, multi-user roles, HTTPS TLS 1.2 & Email TLS.
PoE+ (30W) or 24V DC powering.
2GB embedded data logging. CE, FCC, EMC & UL6238 (pending).
Supports NFPA 70B electrical maintenance programs & FM loss prevention.
EPMS & BMS integration via SNMP, Modbus, BACnet IP & MQTT.
Up to 12 M Series sensors via dedicated sensor ports.
Embedded firewall, multi-user roles, HTTPS TLS 1.2 & Email TLS.
PoE+ (30W) or 24V DC powering.
2GB embedded data logging. CE, FCC, EMC & UL6238 (pending).
The SwitchMon Base Unit is the heart of the SwitchMon platform — purpose-built for the continuous monitoring of electrical assets. It aggregates continuous thermography, continuous condition monitoring and continuous environment monitoring of switchgear, busbars, breakers and connections.
Continuous monitoring supports condition-based electrical maintenance programs under NFPA 70B and aligns with FM loss-prevention requirements, with all sensor data streamed directly into your EPMS and BMS.
The SensorGateway v7 (S-BASE-7) is now available for pre-order. Contact us for lead times and project pricing.
Continuous Monitoring
Aggregates continuous thermography, condition and environment monitoring of switchgear, busbars, breakers and connections.
Built for NFPA 70B & FM
Continuous monitoring supports condition-based electrical maintenance programs under NFPA 70B and FM loss-prevention requirements.
EPMS & BMS Integration
Native SNMP v2 & v3, Modbus TCP & RTU, MQTT and now BACnet IP for direct integration into your EPMS and BMS.
Sensor Capacity
Connect up to 12 M Series sensors directly to the base unit's dedicated sensor ports.
Modbus RTU Master & Slave
Full RS-485 flexibility with Modbus RTU IN (Master) and OUT (Slave), plus a built-in relay output for alarm signalling.
Enterprise-Grade Security
Embedded firewall, multi-user roles, HTTPS TLS 1.2 and Email TLS, with full IPv4 & IPv6 support out of the box.
Flexible Power Options
Power over Ethernet (PoE+ 30W) or 24V DC via terminal block to suit any deployment.
Embedded Data Logging
2GB of onboard storage keeps a local history of sensor readings, even during network or upstream outages.
Technical Specifications
View detailed protocol support, sensor capacity, security, power and physical specifications for the S-BASE-7.
