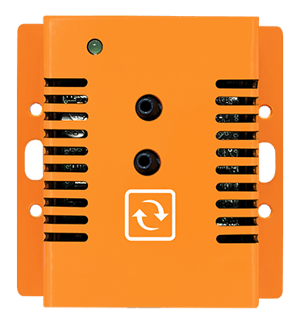

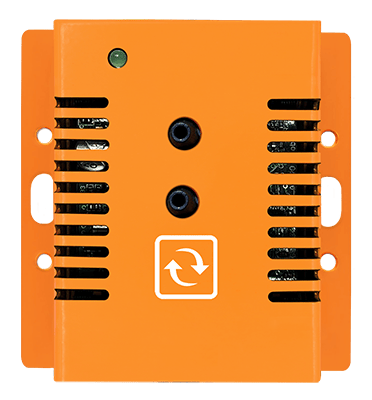

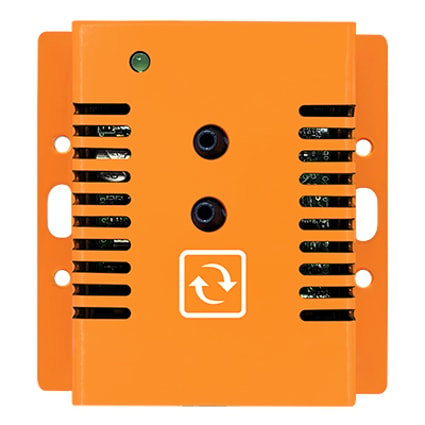

ENV-AIRPRESSUREDigital Differential Air Pressure & Temperature Sensor
for data centers, healthcare & critical facilities
Differential pressure from -500 Pa to +500 Pa (±2.0 inH2O).
Pressure accuracy of 0.5 Pa.
Air temperature from -45°C to +85°C (-49°F to +185°F), ±0.5°C.
Two measurements, one sensor port on the base unit.
Designed in the USA, sensor element made in Switzerland.
Alerting via email, SMS and voice call.
Plug & play — SNMP, Modbus TCP & BACnet IP ready.
Pressure accuracy of 0.5 Pa.
Air temperature from -45°C to +85°C (-49°F to +185°F), ±0.5°C.
Two measurements, one sensor port on the base unit.
Designed in the USA, sensor element made in Switzerland.
Alerting via email, SMS and voice call.
Plug & play — SNMP, Modbus TCP & BACnet IP ready.
Raised Floor & Plenum
Verify that the underfloor plenum is actually delivering pressure where the racks need it, instead of assuming it is.
Aisle Containment
Measure the differential between cold aisle and hot aisle to catch recirculation and bypass air before it becomes a hot spot.
Healthcare & Clean Rooms
Continuously document positive or negative room pressure in isolation rooms, pharmacies and clean rooms.
Pressure & Temperature
Differential pressure and air temperature from a single sensor on a single base unit port. Swiss made sensor element.
Deployment Guidance
Where to place the sensor and how to run the reference tubing so the measurement means something.
How It Works
Connects to the base unit over a standard network cable, up to 100m (330ft). No local power, no software.
Flexible Integration
Readings and alerts over SNMP GET & TRAPS, Modbus TCP and BACnet IP, with email, SMS and voice call alerting.
Guided Video Tour
A short introduction to the differential air pressure sensor and how it is deployed in a critical facility.
Technical Specifications
View measurement range, accuracy, mounting and connectivity specifications for the ENV-AIRPRESSURE.
Raised Floor & Plenum Pressure
In a raised floor data center the underfloor plenum is the delivery system for all of your cooling. Static pressure under the floor is what pushes air up through the perforated tiles and into the server inlets — and it is invisible unless you measure it.
- Confirm delivery, not intent: tile placement, cable congestion and unsealed cut-outs all change what actually reaches the racks.
- Catch changes over time: every re-cabling job, floor tile lift or new rack alters the plenum. Continuous measurement shows the drift.
- Support CFD assumptions: a model is only as good as the pressure it assumes. Real readings give the model something to be measured against.
Pressure & Temperature in One Sensor
The ENV-AIRPRESSURE returns two measurements over a single sensor port on the base unit: differential air pressure in Pascal, and the air temperature at the same point.
- Pressure range of -500 Pa to +500 Pa (±2.0 inH2O), accuracy 0.5 Pa.
- Temperature range of -45°C to +85°C (-49°F to +185°F), 0.1°C resolution, ±0.5°C accuracy.
- Digital measurement end to end — no analogue signal path to drift between the probe and the base unit.
- Independent thresholds and alerts per reading.
- The sensor is designed in the USA; the pressure and temperature sensor elements are made in Switzerland.
How It Works
The ENV-AIRPRESSURE connects to the base unit over a standard network cable, up to 100m (330ft), which makes it an Ethernet differential air pressure & temperature sensor. The base unit is a standalone device with its own IP address — on its own it monitors the sensor and triggers alerts, with no PC or software required.
- Measures differential air pressure in Pascal and the air temperature at the same point.
- Powered by the base unit (PoE, 12v DC, optionally 24v or -48v).
- Alerting via email, SMS and voice call from the base unit itself.
- Optional Monitoring Software for central monitoring and trending — not required.
