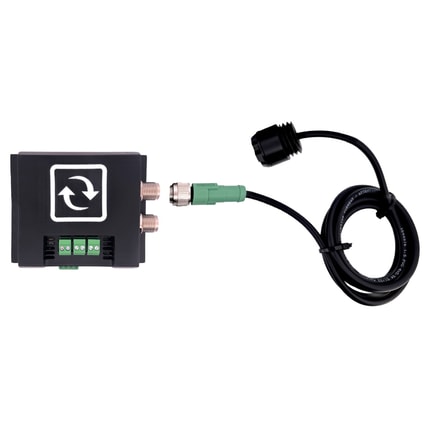

R-THIMG-SM/XSThermographic Hotspot Detector
for battery rooms & BESS
Continuous thermography scanning to detect BESS hotspots.
Monitors Stage 1 abuse to prevent BESS subsystem failures.
Standalone anomaly detection across 4 defined thermal zones.
Reports Delta Ambient T via embedded temp & humidity sensor.
Pairs with R-LEAK-LOC for complete Stage 1 abuse monitoring.
Available in Small (32x24) (C-THIMG-SM) and
Also Available in Extra Small (16x12) (C-THIMG-XS) variants.
Monitors Stage 1 abuse to prevent BESS subsystem failures.
Standalone anomaly detection across 4 defined thermal zones.
Reports Delta Ambient T via embedded temp & humidity sensor.
Pairs with R-LEAK-LOC for complete Stage 1 abuse monitoring.
Available in Small (32x24) (C-THIMG-SM) and
Also Available in Extra Small (16x12) (C-THIMG-XS) variants.
Early Hotspot Detection
Continuously scans electrical equipment inside BESS to identify thermal anomalies before they escalate.
Stage 1 Abuse Monitoring
Addresses the root cause of 89% of BESS failures by catching electrical faults at their inception.
4 Defined Target Zones
Divides its wide 110° field of view into 4 distinct reporting zones for precise spatial hotspot monitoring.
Delta Ambient T Tracking
An embedded temperature and humidity sensor intelligently reports the exact difference between ambient and peak target temperatures.
Standalone Operation
Processes complex thermography data at the edge, requiring no external computing power to detect and report anomalies.
Technical Specifications
View full performance data, detection resolution options (Small and XS), and operating environments for the C-THIMG series.
