Continuous Thermography Monitoring
using thermal image sensors for
24x7 temperature monitoring.
Up to 19,200 temperature points, refreshed every 2 seconds, 24x7.
Catches developing hot spots before they become failures.
Built for NFPA 70B (2026) & FM Global DS 5-19.
Four thermography sensor types — the tool below helps you choose.
Open protocols: Modbus TCP/RTU, BACNet/IP, MQTT.
What it is

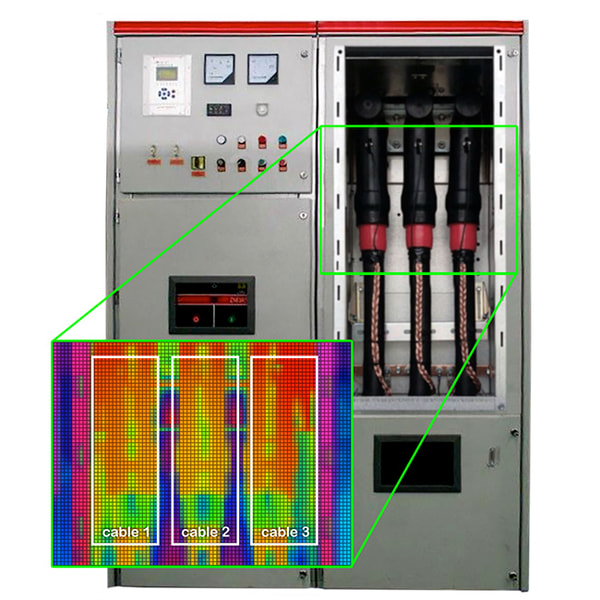

A permanently-installed infrared sensor that produces a full, live thermal image of your switchgear — every busbar, joint and connection, as a grid of up to 19,200 temperature points, refreshed every couple of seconds, 24x7.
Not a single contact or spot reading: it watches the whole scene, so a developing hot spot shows up the moment it appears — not weeks later at the next manual survey.
Why it’s needed
Compliance. NFPA 70B (2026, in force since 2023 and OSHA-referenced) permits permanently-installed continuous thermal monitoring; FM Global DS 5-19 recommends it for switchgear.
Safety & uptime. Loose connections, overloads and failing parts overheat before they fail — catching that early prevents damage, outages and fire risk.
The gap it closes. Point sensors and quarterly camera surveys have blind spots; continuous full-image monitoring watches the whole scene, all the time.
Find your sensor
