Different manufacturers offer vibration sensors that are analog based: an alert is triggered if motion has been detected — and that is all you learn.

Unlike those sensors, InfraSensing's shock and vibration sensor reports the actual force being recorded:

- Multi-axis G-force measurement with a range of ±2g.
- Sensitivity of 0.18g.
- Accurately detects the level of vibration, not just its presence.
- Define the exact G-force threshold you want to be alerted on.

This turns vibration from a binary trip-wire into a measured, trendable value — small variations that may affect your critical infrastructure become visible before they become incidents.

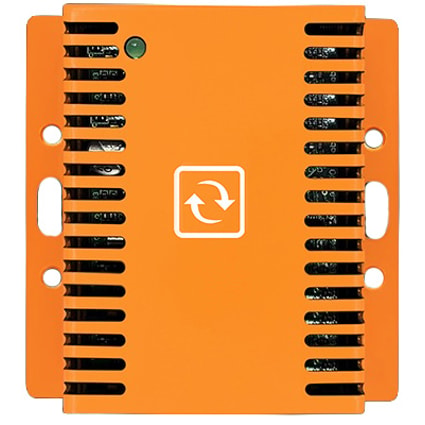

Mounted on a rack, enclosure or the equipment itself, the SEC-SHOCK detects and records:

- Tampering with equipment or enclosures.
- Movement of equipment that should not move.
- Removal or installation of equipment within racks.

The moment the recorded G-force exceeds the threshold you set, the base unit raises an alert via email, SMS or voice call — giving you a physical security layer on racks and enclosures without cameras or door contacts.

See also the SEC-DOOR door contact sensor for complementary access monitoring.

Vibration degrades and destroys sensitive equipment — traditional hard disks being the classic example, where sustained vibration measurably reduces both performance and lifespan.

The SEC-SHOCK continuously monitors vibrations and shocks in rooms, racks and enclosures housing such equipment:

- Detect abnormal vibration from nearby construction, machinery or HVAC.
- Record shocks and impacts on racks and enclosures.
- Trend the measured G-force over time via the base unit and optional Monitoring Software.

Because the sensor reports the measured force, you can distinguish harmless background vibration from levels that put equipment at risk.

- Connects to the base unit over standard network cable.
- BMS integration over Modbus TCP, BACnet IP & Modbus RTU (RS-485, with the optional RTU addon).
- SNMP GET and SNMP TRAPS for NMS & DCIM platforms.
- MQTT for Industrial IoT applications (BASE-6).
- Alerting via email, SMS and voice call from the base unit itself.
- Plug & play — no configuration required on connection.

Looking to integrate this sensor with your own gateway or control system?

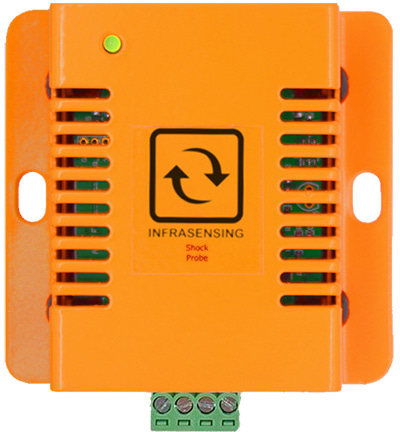

The RS485-SHOCK is a special version of the vibration sensor with a native RS-485 digital output, allowing direct integration bypassing our base units.

Questions? Chat with us or drop us an email at [email protected] — it will be a pleasure to assist you.

For projects and jurisdictions requiring certified components, the shock & vibration sensor is available as the SEC-SHOCK-L: a UL Recognized (UR 61010) version with the same measurement capabilities as the standard SEC-SHOCK.

Specify the -L version at ordering when your project requires the UL Recognized Component Mark.
